AWS Integration Setup Guide

AWS Integration Setup Guide

AWS Integration Setup Guide

AWS Integration Setup Guide

AWS Integration Setup Guide

AWS Integration Setup Guide

This guide walks you through setting up an AWS integration using the role ARN-based connection method.

Prerequisites

Before starting, ensure you have:

  • AWS account administrator access or appropriate IAM permissions

  • Access to AWS Management Console

  • Your AWS Account ID

Step-by-Step Setup Process

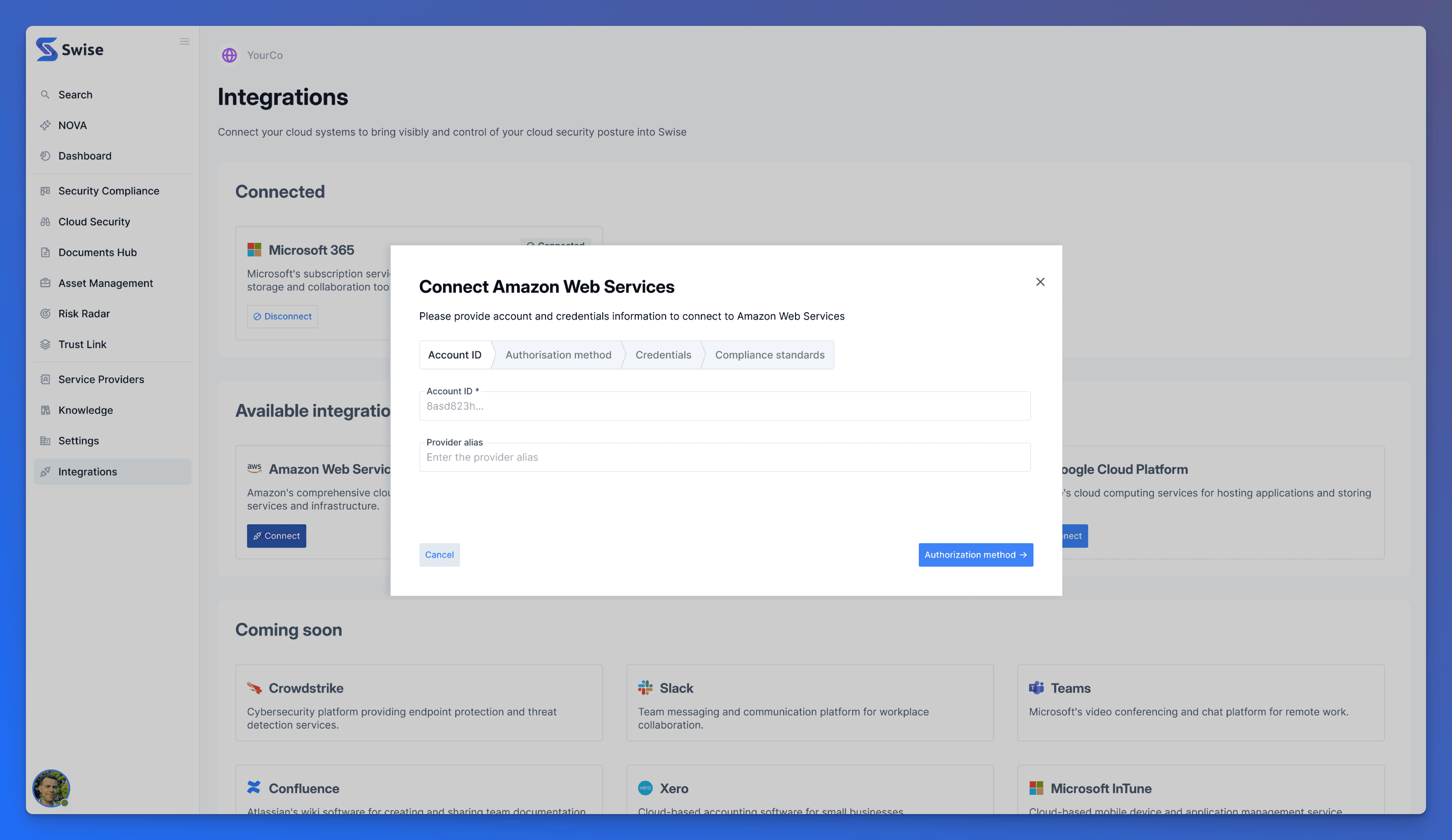

Step 1: Access the AWS Integration Dialog

  1. Navigate to Integrations in the Swise menu

  2. Locate the Amazon Web Services integration and click Connect

  3. The "Connect Amazon Web Services" dialog will open

Step 2: Enter Account Information

  1. In the Account ID tab (the first tab), enter your information:

    • Account ID: Enter your 12-digit AWS Account ID (e.g., 123456789012)

    • Provider alias: (Optional) Enter a friendly name to identify this AWS account (e.g., "Production AWS" or "Dev Environment")

  2. Click Authorisation method → to proceed to the next step

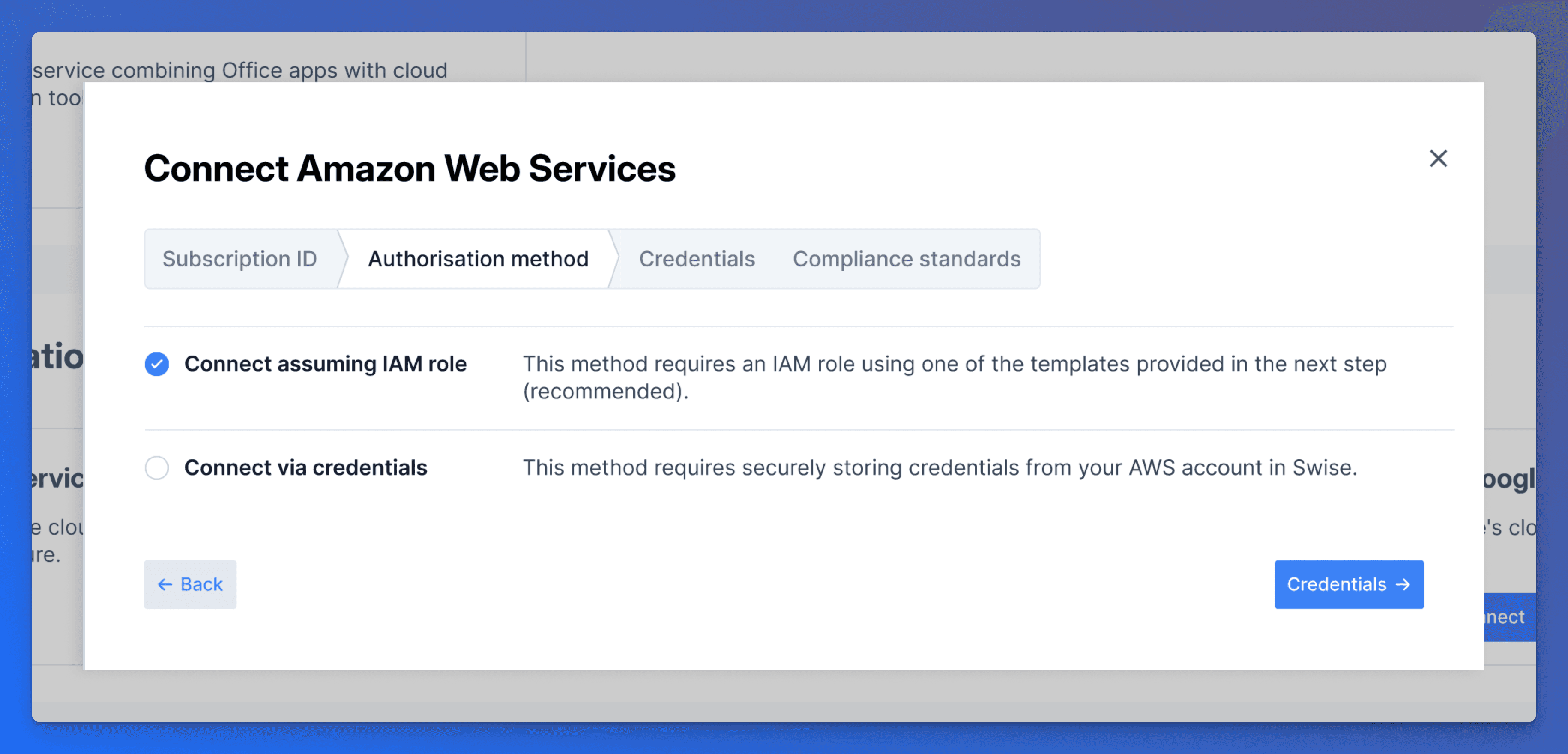

Step 3: Select Authorisation Method

  1. In the Authorisation method tab, you'll see two options:

    • Connect assuming IAM role ✅ (Recommended and only available option)

    • Connect via credentials (Coming soon)

  2. Select Connect assuming IAM role (it should be pre-selected)

  3. Note the explanation: "This method requires an IAM role using one of the templates provided in the next step (recommended)."

  4. Click Credentials → to proceed

Step 4: Create IAM Role in AWS

Before proceeding with the credentials setup, you need to create a read-only IAM role in your AWS account. You have two options:

Option A: Using CloudFormation quick link (Recommended)

  1. In the Credentials tab use the provided Quick-link which will redirect you to your AWS account with all of the necessary IAM role creation settings pre-filled.

  2. After signing in to your AWS, review and complete the role creation process, which creates a role for Swise to assume when connecting to your account.

Option B: Using CloudFormation Template

  1. Click the CloudFormation Template link in the application

  2. This will download or open a CloudFormation template

  3. In AWS Console, go to CloudFormation > Create Stack

  4. Upload the template and follow the deployment wizard

  5. Note the Role ARN from the stack outputs

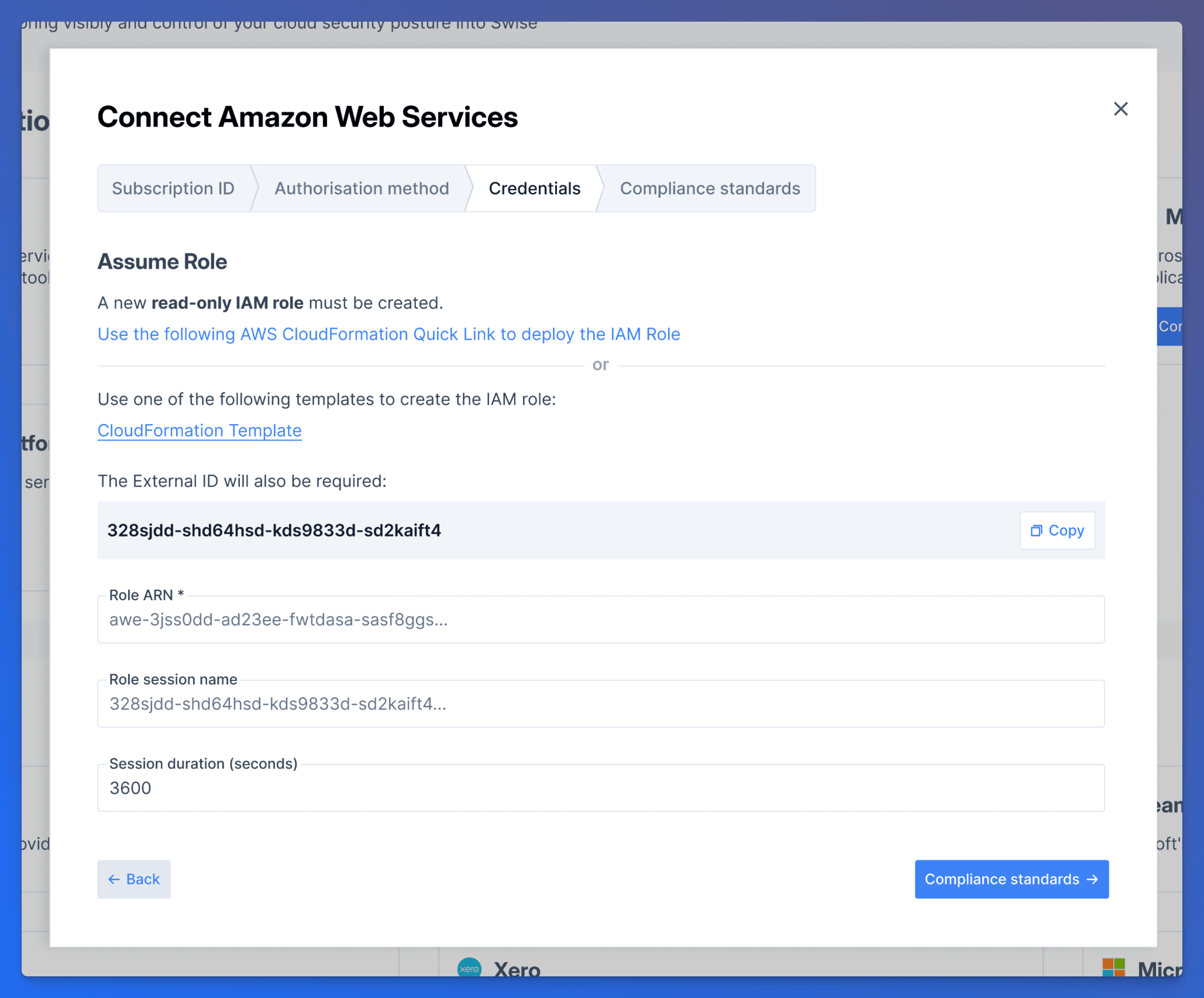

Step 5: Configure Credentials

External ID: Copy the provided External ID exactly as shown

  • Example: 328sjdd-shd64hsd-kds9833d-sd2kaift4

  • This is a unique identifier that must be used when creating your IAM role

Once the IAM role is configured, complete your credentials setup by completing the following:

  1. Role ARN: Enter the complete ARN of the IAM role you created in Step 4

    • Format: arn:aws:iam::123456789012:role/YourRoleName

  2. External ID: (This should auto-populate, but verify it matches the one shown above)

  3. Role session name: (Optional) Enter a name for the role session

    • Default format: 328sjdd-shd64hsd-kds9833d-sd2kaift4

    • This helps identify the session in AWS CloudTrail logs

  4. Session duration (seconds): Set the session duration

    • Default: 3600 (1 hour)

    • Range: 900 seconds (15 minutes) to 43,200 seconds (12 hours)

    • Choose based on your security requirements

  5. Click Compliance standards → to proceed

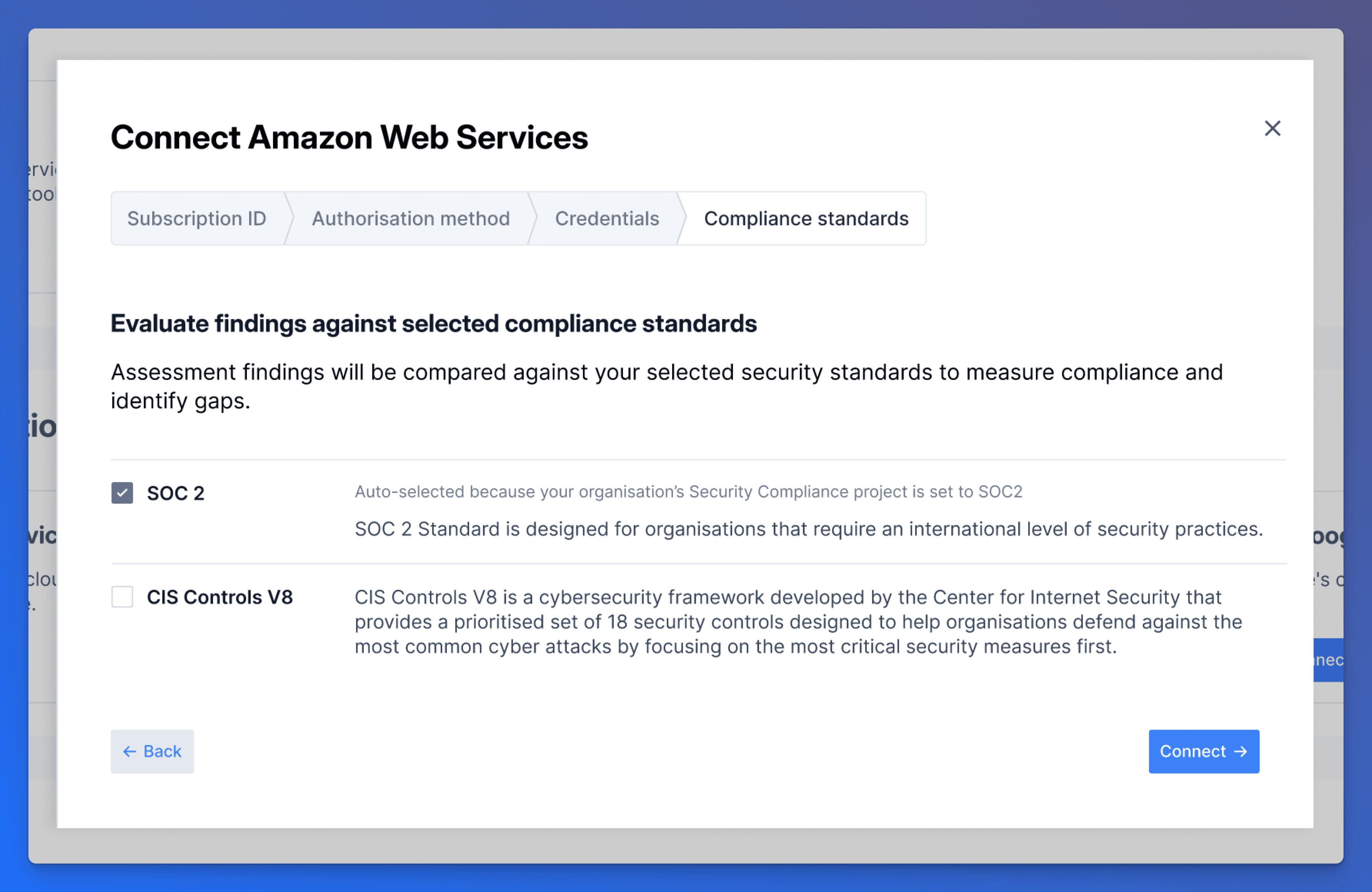

Step 6: Select Compliance Standards

  1. In the Compliance standards tab, choose which security frameworks to evaluate against:

    Presented option

    • Swise will pre-select an option to match your organisation's Security Compliance project. For example if your organisation's security compliance project is SOC2 then the options pre-selected here will also be SOC2.

    • This settings enables Swise to monitor the security of this integration specifically against the compliance standard relevant to your organisation.

    CIS Controls V8 (Optional)

    • Check this option if you'd like to also monitor the AWS source from the perspective of the CIS Controls framework.

  2. Click Connect to finalise the setup

Step 7: Swise will make the connection 🎉

  1. After clicking Connect, Swise system will authenticate with AWS and monitoring will be activated

  2. Soon results from this monitoring will become available in the Cloud Security dashboard, which you can access by selecting Cloud Security from the Swise menu.
